Compact, Lightweight, and Configurable—Power Distribution and Fiber Optic Connectivity
The always-growing small cell market requires unique solutions that maximize limited space and build reliability into infrastructure. Transtector’s line of small cell cabinets provide the ideal platform for power and connectivity, and now there are several new configurations available.
Download a datasheet—click here.

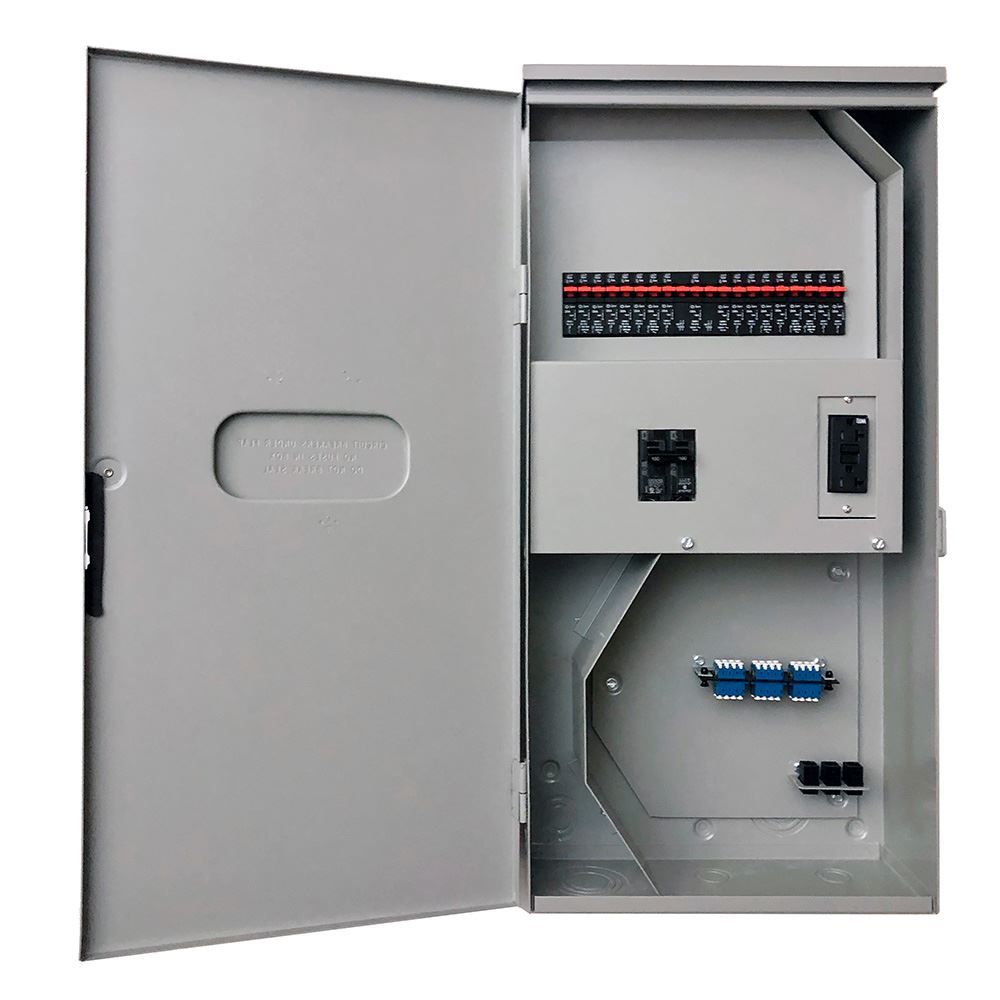

The new SC-3MM-100 Series enclosures combine service entrance rated power capacity, surge protection, and integrated fiber optic and twisted pair connectivity into a standard 29 x 14 x 5-inch footprint.
The Challenges of the Application
Small cell/5G architectures vary significantly based on local market requirements, growing system loads, local codes, and communication equipment deployed on site. The new power/fiber distribution cabinets provide the configurability, flexibility, feature aggregation, and reliability to effectively manage service entrance disconnect functionality and meet site requirements and industry standards in constrained spaces.
More Capabilities in Minimal Space
Each cabinet is service entrance rated, eliminating the need for a separate disconnect between the cabinet and utility. Users can configure each cabinet for the application, but baseline features include the following:
• 100A Main breaker
• Integrated surge protection—Transtector I2R75K E240
• 16 Branch circuit breakers/2 dual-pole breakers
• 24 Fiber optic couplers
• 3 Twisted pair couplers
• Female RJ45 connector field
Configurable and Flexible
Within the base configuration, users can specify circuit breaker values from a list of options based on specific application requirements. Fiber optic and twisted-pair connectivity is field-configurable, eliminating costly downtime during commissioning. Additional customizable options include , GFCI convenience outlet, field-configurable DIN rail branch breakers and more.
Ideal for Space-Constrained Environments
The compact, lightweight, multifunctional design of these cabinets provides a dynamic solution for any application where space is at a premium. To see all of Transtector’s small cell power cabinets—including options, features, and more—click here
