PoE Ethernet Switch, 10 Port Gigabit, 8x RJ45 10/100/1000TX PoE+ 802.3at/af 120W Budget, 2x RJ45 10/100/1000TX, Wall, Rack or Desktop Mount

10 Port Desktop Gigabit Ethernet Switch w/ PoE+

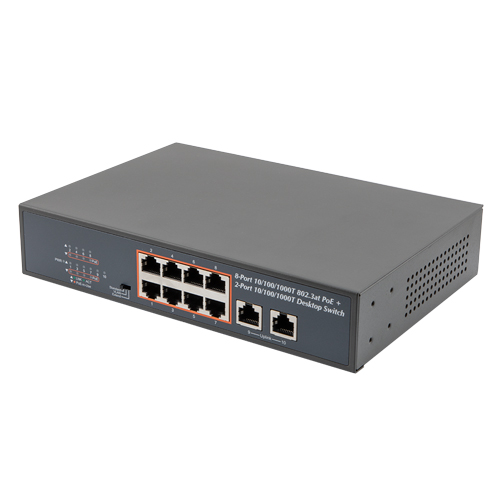

The TT-DT10-2G-8GP+ from Transtector is a gigabit, PoE+ capable, 10 port Ethernet switch that offers a cost-effective, PoE friendly solution for connecting devices over a triple speed network.

The TT-DT10-2G-8GP+ unit has 2x 10/100/1000TX RJ45 jacks and 8x 10/100/1000TX RJ45 jacks capable of delivering end-span PoE+ power at the IEEE 802.3at standard of up 30 watts per port with an overall power budget of 120 watts. It is fully backwards compatible with IEEE 802.3af standards. It is great for powering hard to reach PoE capable IP devices such as building control systems, telephones, security cameras, access points and IoT (Internet of Things) devices. The power supply is included.

Transtector’s TT-DT10-2G-8GP+ switch is easy to use with an unmanaged, plug and play design including LED indicators for both data and PoE power usage. It will auto detect IEEE 802.3af and 802.3at equipment to protect devices from being damaged by incorrect installation. The desktop style design can be wall, DIN rail or desktop mounted using the supplied materials. A front facing DIP switch allows the unit to be easily changed between standard, VLAN and extended modes. Please see the user manual for full operating details. Contact Transtector with your application needs today and don’t forget your Ethernet cables and surge protection equipment.
