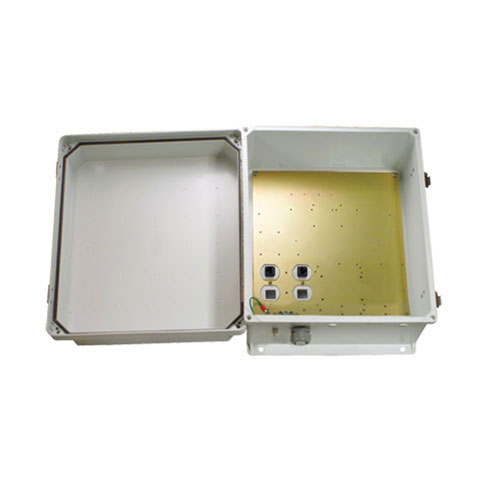

The box is a rugged weatherproof enclosure that is ideal for both indoor and outdoor applications. Constructed from molded fiberglass reinforced polyester, it is well suited for high temperature or corrosive environments. The integrated mounting flange allows it to be mounted directly to any flat wall surface provided proper screws are used into secure studs. The enclosure can be also be mounted to a wide diameter range of poles with one of our optional pole mounting hardware kits. The raised lid features a stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. Includes fully gasketed lid & integral mounting flange. The enclosure material is UV stabilized and comes in machine tool gray.
Mounting Plate
The mounting plate features a CAT5 802.3af compatible PoE interface that feeds power plus data to the internal network equipment. It requires an injector/midspan to supply 48VDC to the PoE devices installed inside the enclosure. The interface includes lightning protection and support for normal and reverse polarity PoE equipment. The enclosure also features holes for two N-Bulkhead lightning protectors or connectors, a grounding lug, and a cable conduit connector.
The TEF-PMT series of pole mounting kits allow the populated enclosure to be securely mounted to a variety of different size poles. Compatible versions include TEF-PMT13, TEF-PMT16, TEF-PMT28, TEF-PMT29, TEF-PMT30 & TEF-PMT33
*Note: Enclosure ports (cable conduit connector and N-type holes for lightning protectors or connectors) must be properly sealed tomaintain NEMA Type 4 / IP66 rating
Features
- Molded Fiberglass Reinforced Polyester (FRP) industrial enclosure with integral mounting flange
- Stainless steel quick release latches with padlock hasps
- NEMA Type 4
- IP66 rated*
- Fully gasketed raised lid
- Features aluminum mounting plate with 802.3af compatible PoE interface with CAT5 surge protection
Applications
- Remote wireless LAN WiFi equipment installations using Power-Over-Ethernet
- Indoor/outdoor installations
- Corrosive environments
- Hotspot//Protection of equipment from theft or damage
